Description

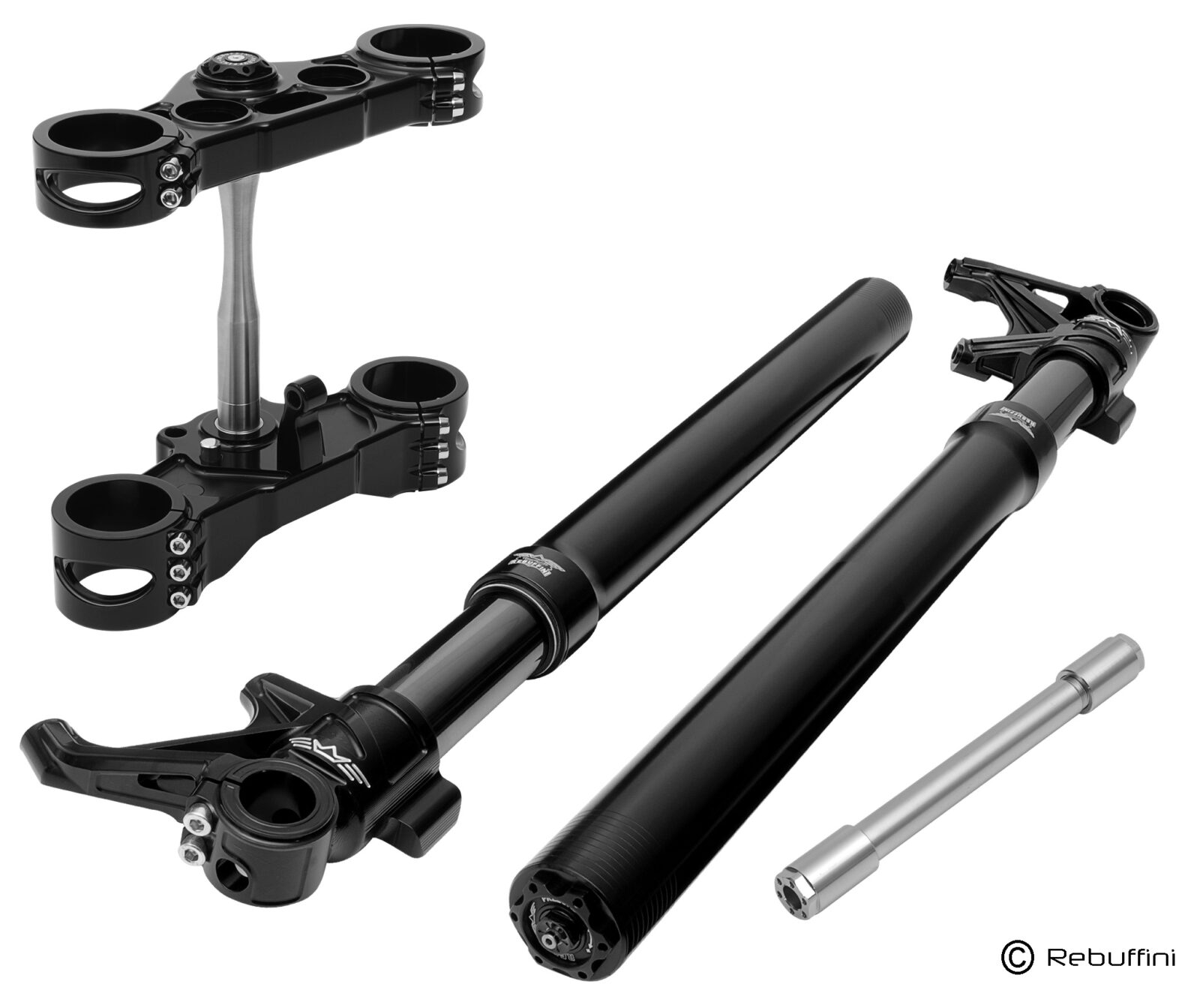

Upside down front fork for Harley-Davidson Nexo 5.0
The “NUMBER 1″ of inverted frontend for Harley-Davidson motorcycles!
Rebuffini has designed and developed this innovative upside down fork
for any custom builder that wants to give the bike supreme performance
and at the same time get a superlative design.
The technology in this fully adjustable product is proven by the collaboration of
the Italian company Andreani Group, one of the leading brands in suspensions since 1987.
Designed with the built-in brake-tee lines in the lower tree for a clean look and a faster installation.
For the ABS models it is supplied with a specific external splitter depending on the motorcycle model.
Pre-arranged for the steering lock as standard ( FXR excluded).
The radial fork bottoms, integrated into the legs, were designed with 3D CAD and FEM analysys
for the maximum lightness and rigidity.
They are made from solid with the latest three-dimensional 5-axis CNC technologies.
Fits radial 108mm brake calipers 22.5mm offset with 11.5″ / 11.8″ / 12.6″ / 13” rotors.
These fork bottoms have been designed to also accomodate the ABS sensor.
The Nexo 5.0 is available for all applications:
Sportster, FXR, Dyna, Softail Evo, Softail TwinCam, Softail M8, V-Rod.
Based on the order it is assembled with a specific setting.
Moreover the multiple settings allow a personalized setting.
The Nexo 5.0 kit does not include the brackets for OEM fenders.
We offer a specific Bolt-on real carbon fender.
For FXLRS/ST models we can offer specific fender mounts to keep the OEM fender.
The Nexo 5.0 top tree houses all the risers or handlebars with 89.1 mm center to center.
Also available the Nexo risers set with the same design and finish.
Technical Features:
- Length 760mm (stroke 120mm), 800mm ( stroke 120mm), opzionale 750mm ( stroke 120mm), 810mm (stroke 120mm)
- Clamps 58 mm, lapped internally to reduce the friction coefficient
- Tubes 48 mm, treated with DLC for a better flowability
- 25 mm Wheel axle included
- Fully adjustable in compression, rebound and spring preload.
TOTALLY PERSONALIZABLE IN COLOURS AND SETTING.
ASK FOR A QUOTE WITHOUT OBLIGATION.
